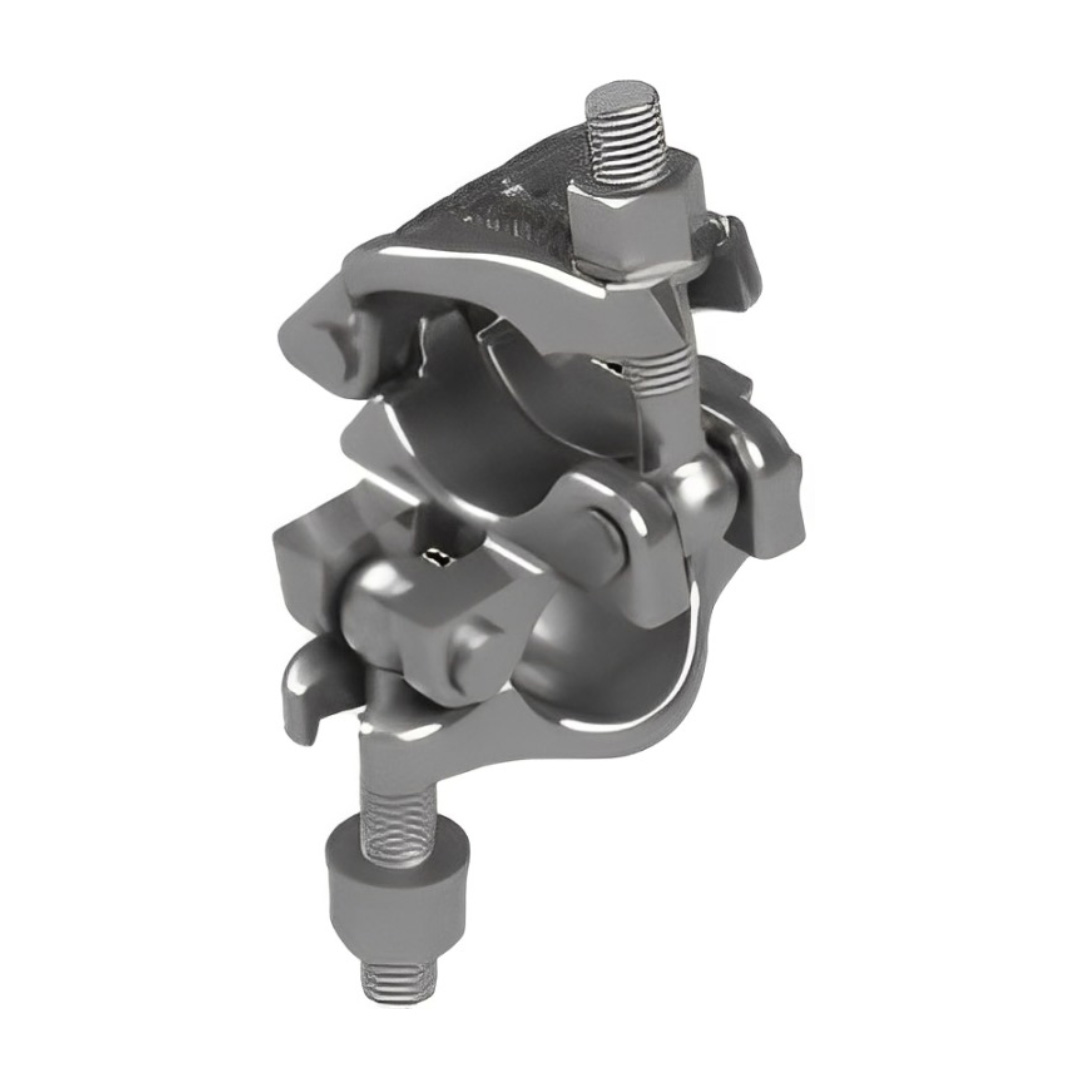

Description: Swivel Coupler
Forged couplers are used to connect & clamp two pipes perpendicular to each other in a scaffold.
MATERIAL: Forged Steel
FINISH: Electro-plated minimum 10-15 microns
Forged-Swivel Coupler
| Product codes | Duty | ØSize | Pcs/Wire Basket | Weight in kgs | Weight in lbs |
|---|---|---|---|---|---|
| CSA19 | Heavy | 48.3 X 48.3 mm (1.9″ x 1.9″) | 650 | 1.8 | 4.0 |
Vertical Mid-Transom Load Rating
| Ledger Size | Single VMT F₁ (kN) | Double VMT F₂ (kN) |
|---|---|---|
| 1524 | 8.9 | – |
| 1829 | 8.0 | – |
| 2130 | 7.0 | 7.8 |
| 2438 | 6.7 | 7.2 |
